Gene CBR-101 Roaster
| Import Company: | Cafetech Co., Ltd |
|---|---|
| Brand | Origin: | Genecafe | Korea |
| Address: | Ansan Tekom Gil 43. Sssa – Dong Sangnok-Gu Ansan SI, Gyeonggi – Do, Korea |
| Power Supply: | 220V |
| Power consumption: | 1300W |
| Net weight: | 12.13 Lbs/5.5 kg |
| Dimensions: | 49cm x 24cm x 23cm (L x W x H) |
| Roasting speed: | 15 – 18 minutes depending on temperature |
| Mixing type: | Vortex twisting (Off-axis rotation) |
| Distribution Area: | Nationwide |
-
Exclusive Deals by Newtec
Authorized Import:Direct Official Import from the Manufacturer
Delivery & Operating Instructions:Free Delivery Nationwide
Warranty & Maintenance:– 12-month warranty (manufacturer defects only).
– Maintenance service available during business hours.
24/7 Online Technical Support:– Skilled technical team with over 10 years of experience.
– Quick troubleshooting and repair to ensure your equipment is back in operation as quickly as possible.
Newtec Service Center:Ho Chi Minh – Da Nang – Ha Noi
Exclusive Offers:– Support customers to borrow machines when Newtec is available and necessary.
– Newtec offers extended warranty and maintenance packages at preferential prices.
Installment support via MPOS and ACS Gene CBR-101 Roaster

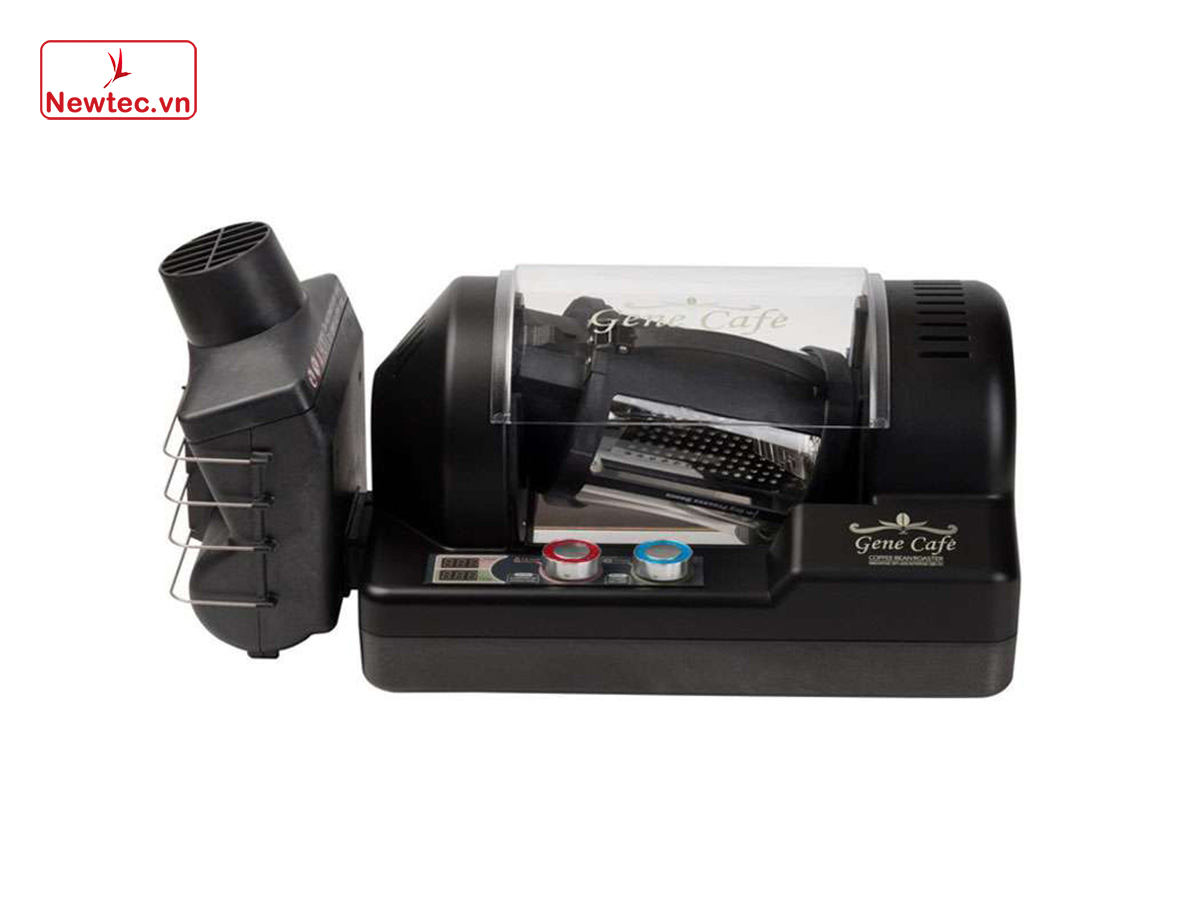

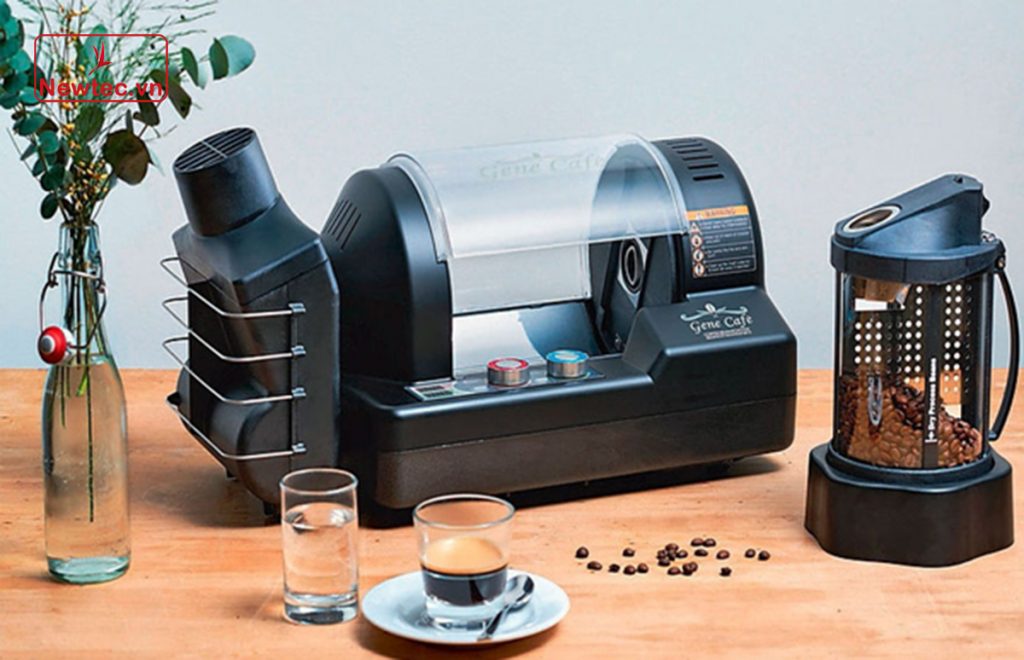

The Gene CBR-101A Mini Coffee Roaster from Korea offers a high degree of automation, making it perfect for small coffee shops as well as home roasting enthusiasts.
Designed for households, café proprietors, and restaurant operations, the Gene CBR-101 coffee roaster blends contemporary styling with high-grade materials and expert engineering.
Its Genesis technology streamlines and automates the roasting workflow.
For optimal performance and longevity, please review the user manual before operating the Gene CBR-101 and follow the recommended operation and maintenance instructions.
Specification
- Mixing type: Vortex twisting (Off-axis rotation)
- Cooling: Ambient temperature forced ventilation (approx. 8 minutes)
- Heating: Indirect hot air (0 ~ 30 minutes)
- Temperature control: 0ºC – 250ºC
- Power Consumption: 1,300W
- Power supply: 220V
- Chamber material: Heat resistant tempered glass tube (Pyrex©)
- Chamber capacity: 250g

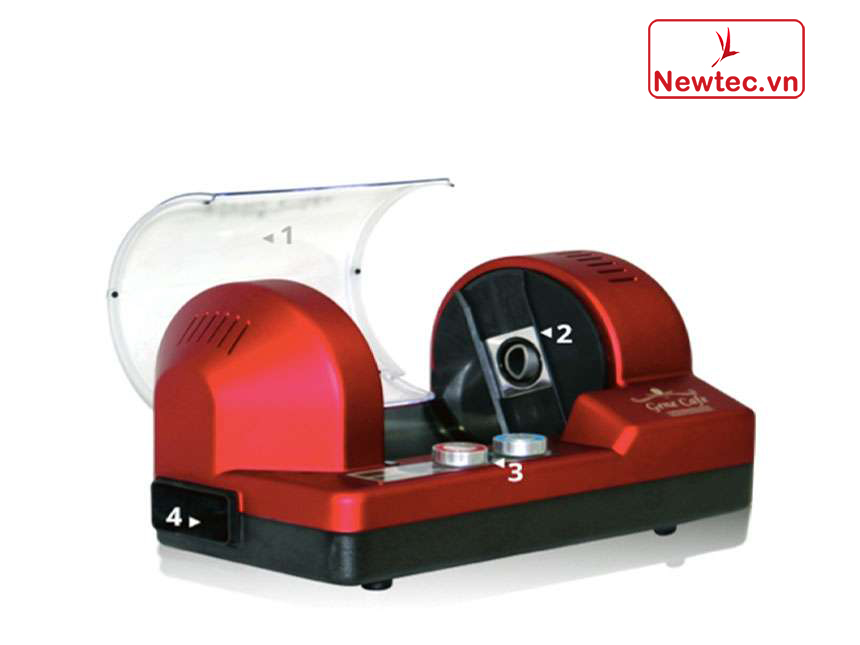

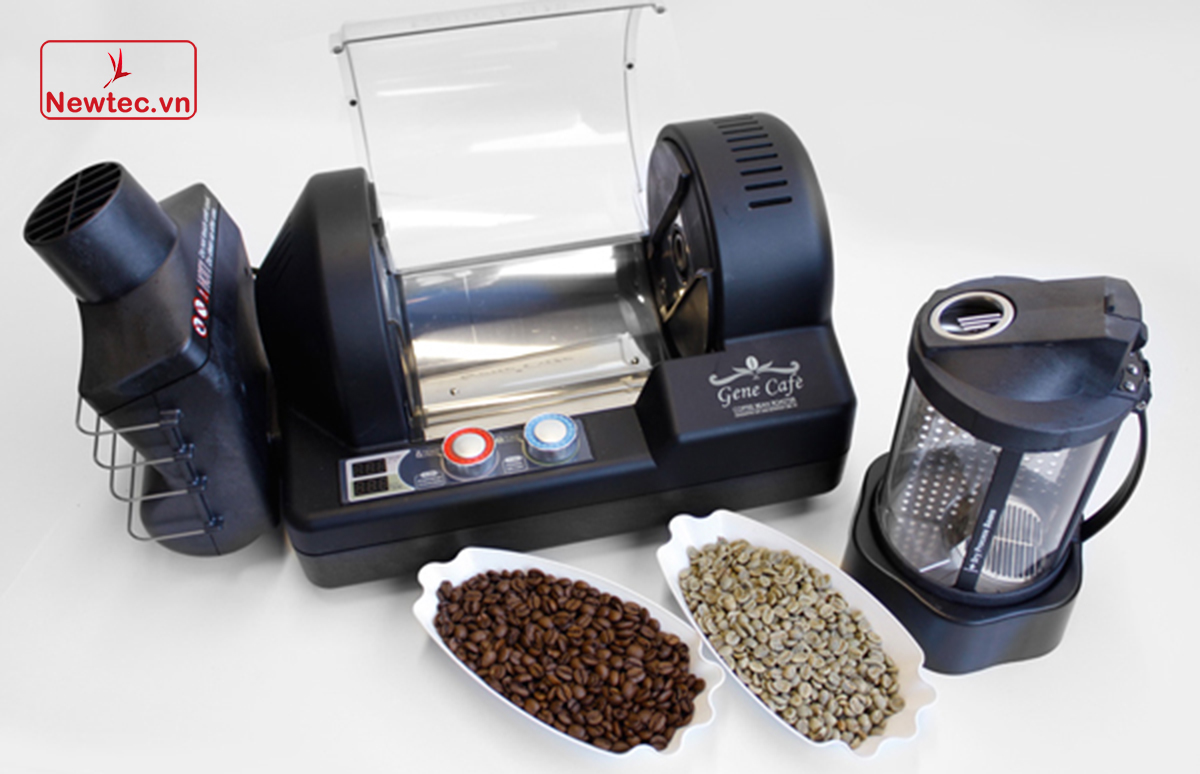

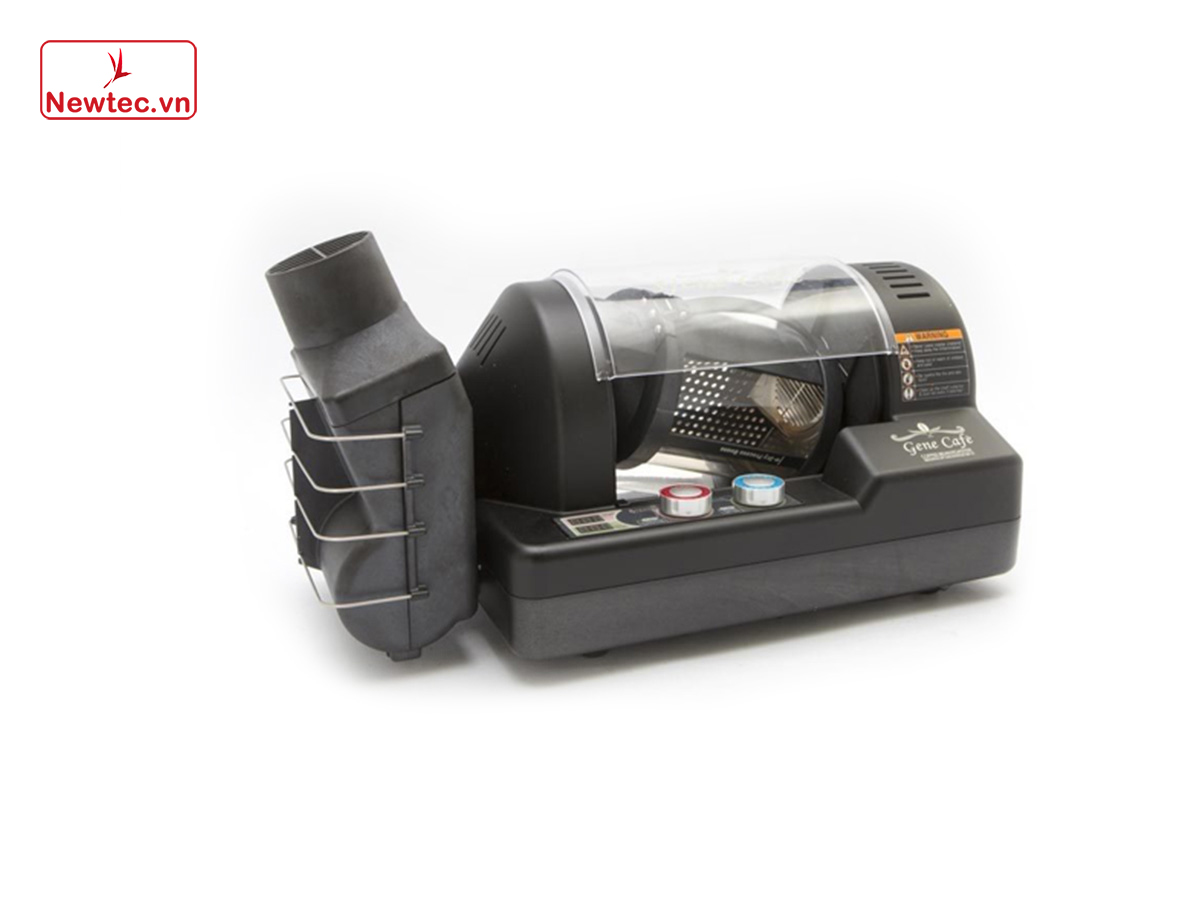

Main Body
- Safety Cover: The clear safety cover helps protect against burns and accidents while still allowing the user to monitor the roasting process. Always close the safety cover before starting the roaster.

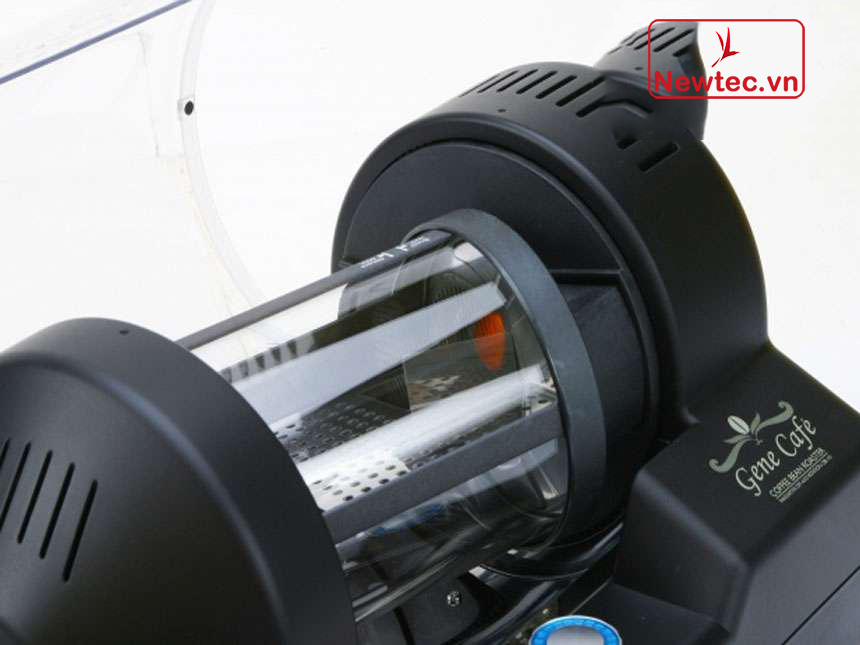

- Chamber Attachment: The removable roasting chamber easily attaches to the mount, which supplies heated air to the chamber.
- Control Panel: Simple fingertip controls make it easy to set roasting time, temperature, cooling cycle and power on/off.

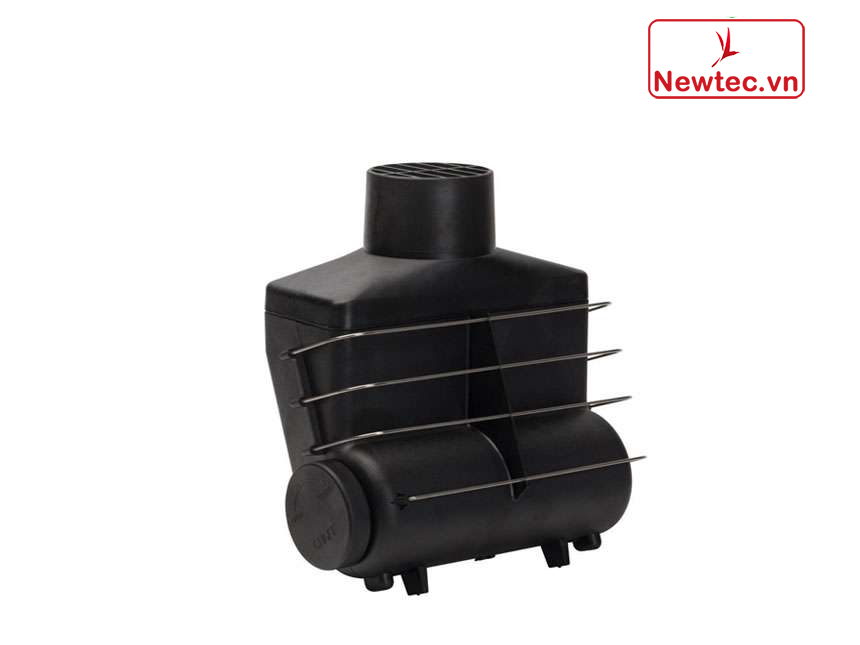

- Chaff Collector Port: The detachable chaff collector attaches to this opening.

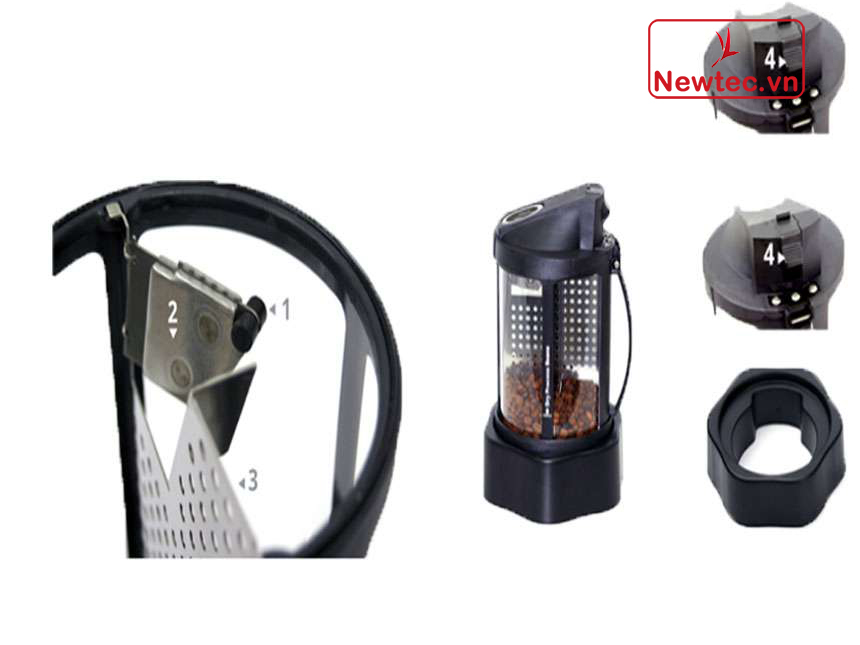

Chamber
1. Blade Rubber: Reduce the shock of blade.
2. Blade: Removing chaff from the beans.
3. Separator: Dividing the chamber improves mixing efficiency for even roasting.
4. Release Button: To detach the chamber from the roaster, push the button to release the locking.
5. Chamber Stand: Supports the chamber in an upright position on your counter to make filling and cleaning easier.
Control Panel
1. Control Panel
2. Temperature Display
3. Time Display4. Temperature (Start/Stop):
– Turn left the dial to decrease the roasting temperature; turn right the dial to increase increases the temperature.
– Press down the dial manually to transfer to cooling cycle.
– Keep press down the dial for 3~5seconds for Emergency stop.
5. Timer (Power On/Off):
– Turn left the dial to decrease decreases the roasting time, turn right to increases roasting time.

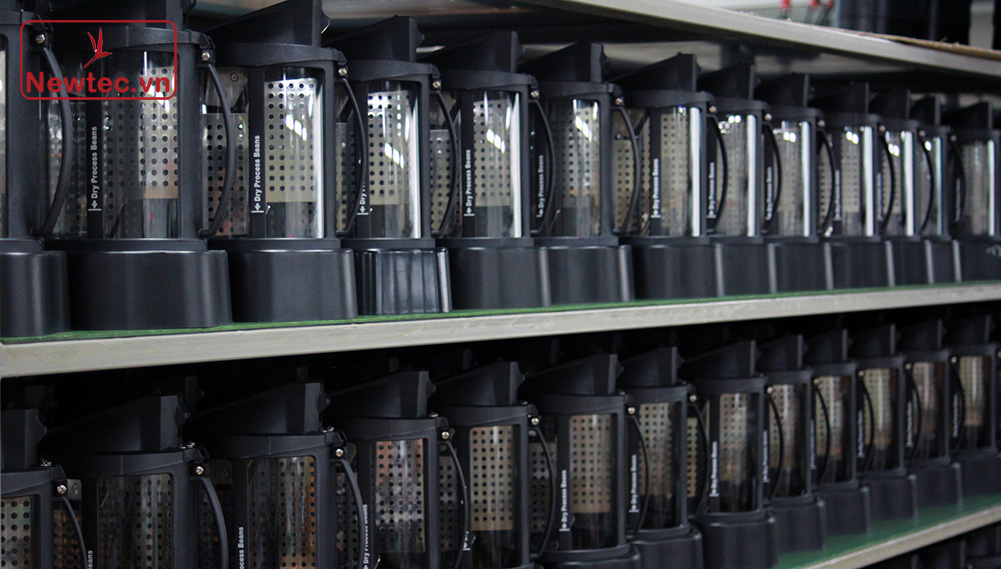

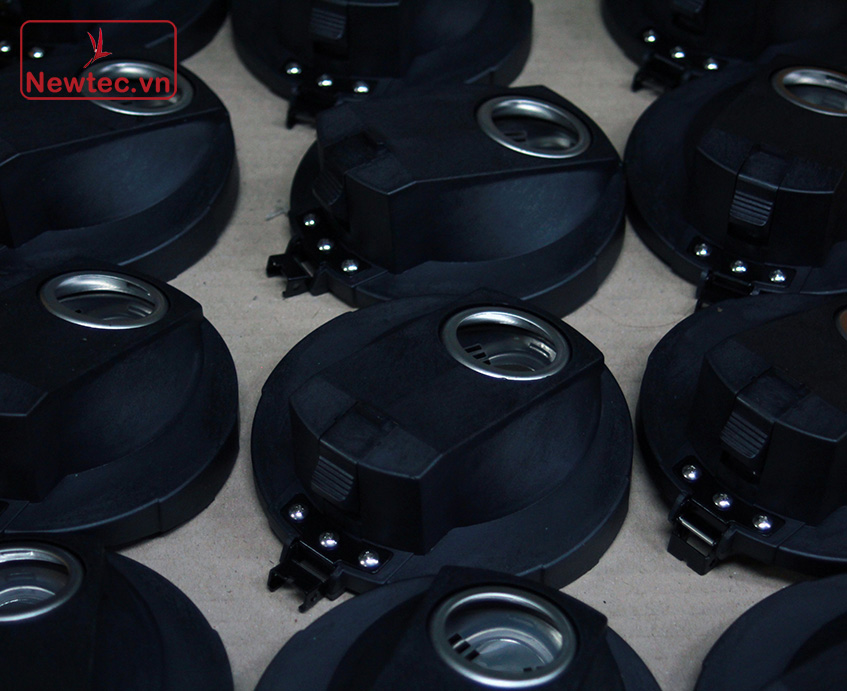

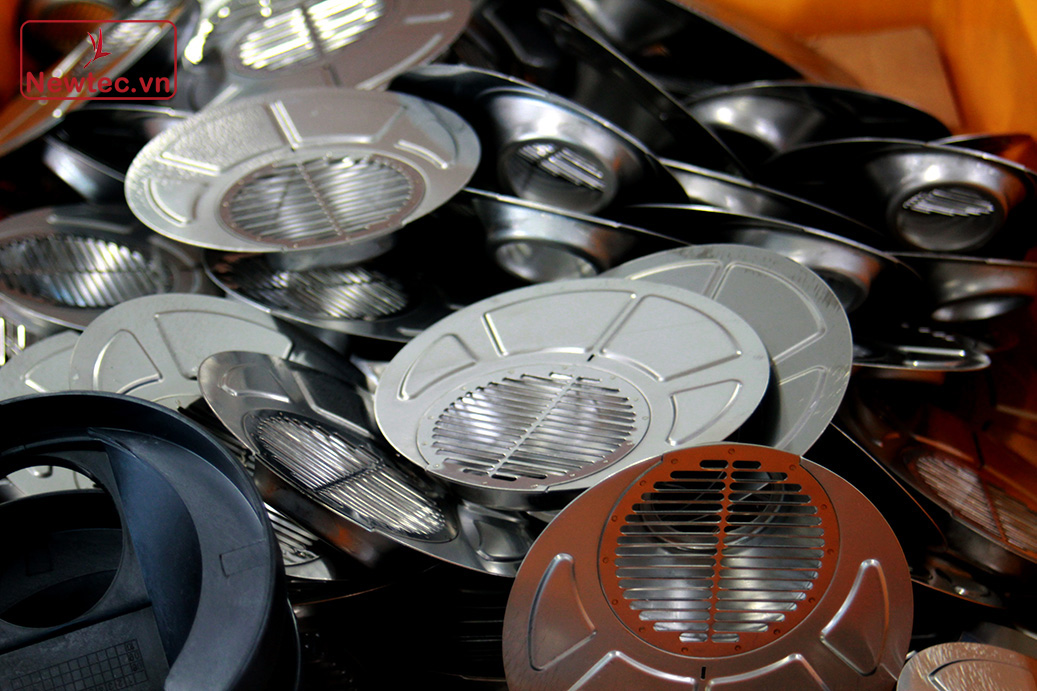

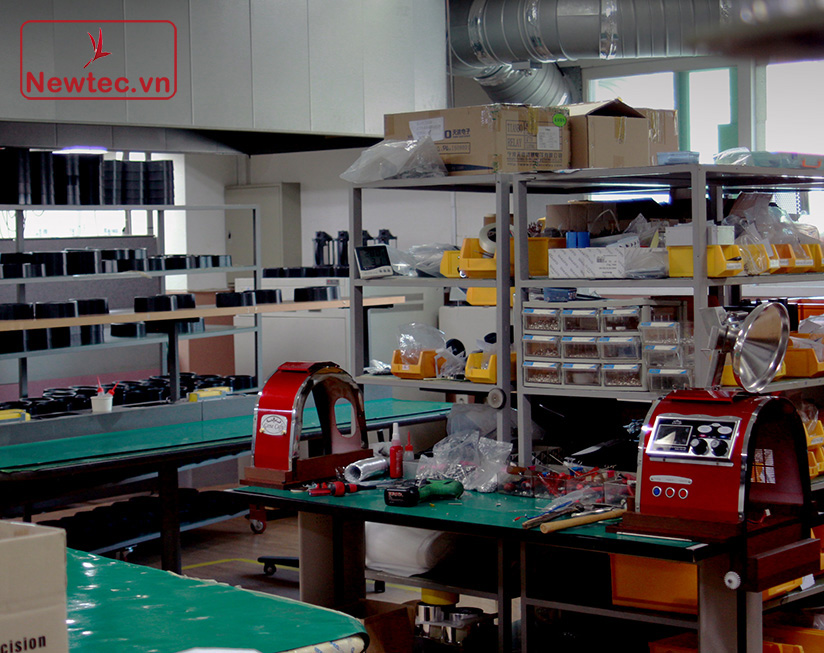

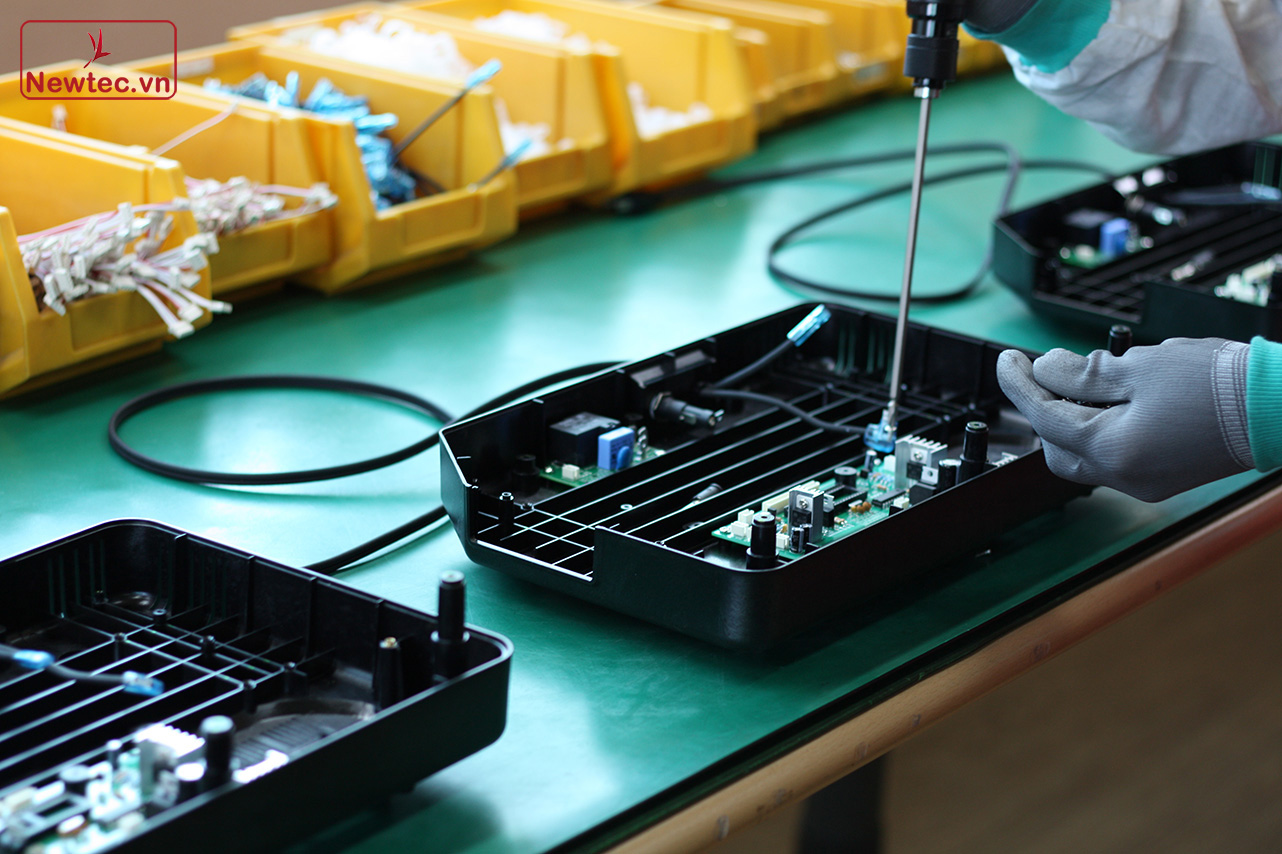

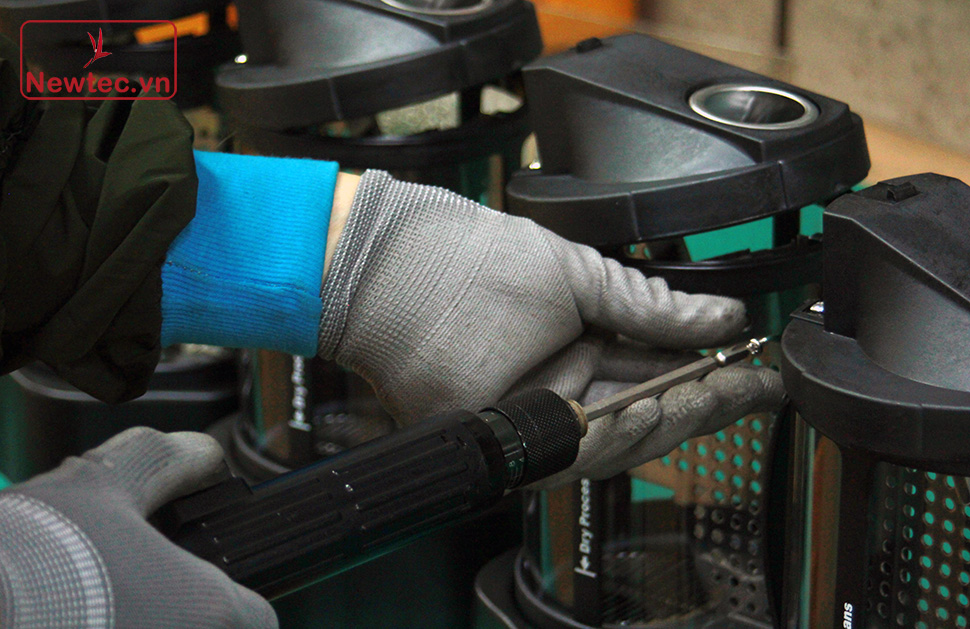

– Press down the dial for power on or of.Some pictures of the production process
